This DM-1701 is an OPEN-BOX, not brand new. It may have damaged packaging and is not suitable to be sold as brand new. This open box is inspected to be working by the BAOFENG quality team. I wish our radio can get a second chance on your hand.
Comes with a 6-month limited warranty. If the item is defective on arrival for unexpected reasons, please contact support@baofengradio.com.
Final sale: any other discounts cannot be applied. Not eligible for any return or refund.

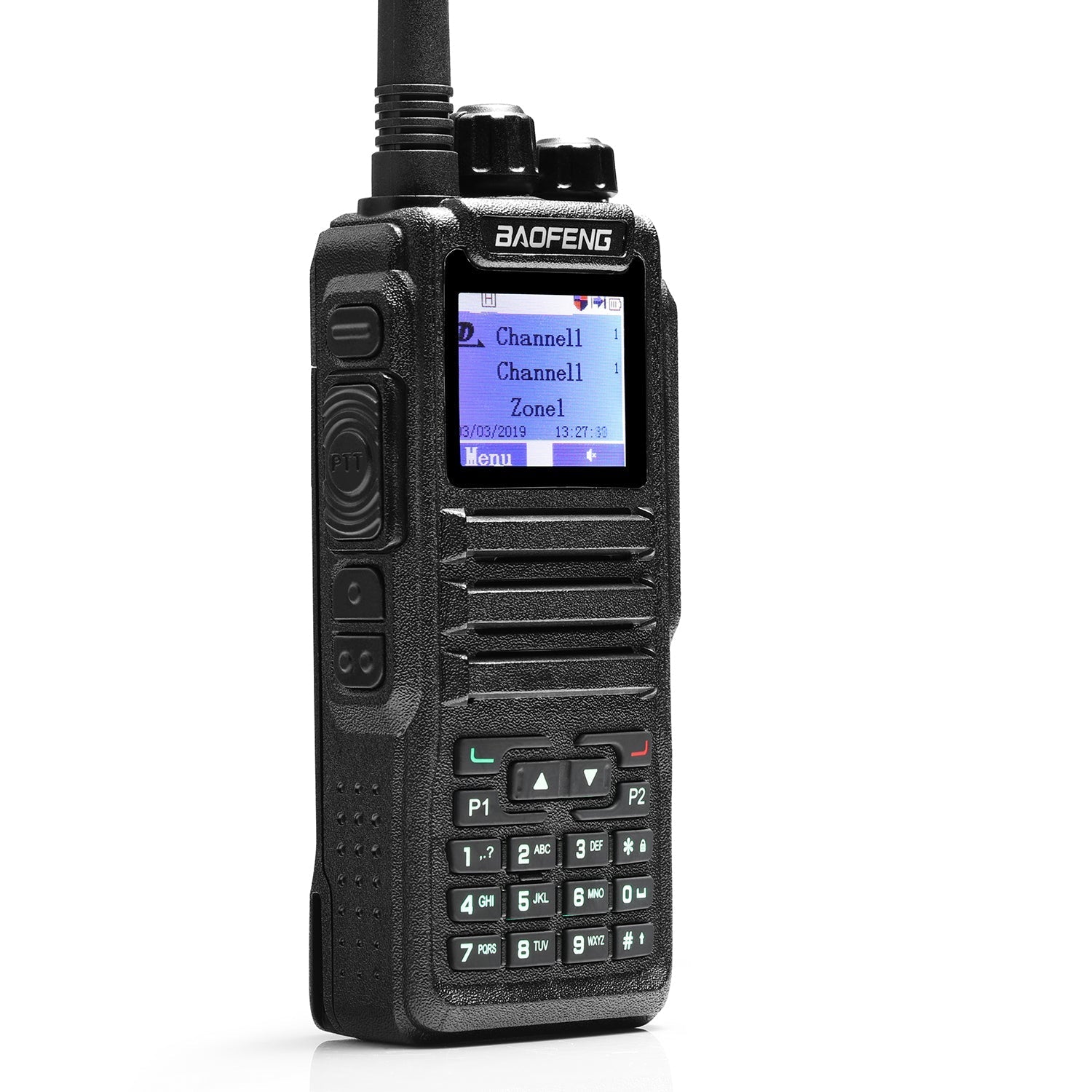

About Baofeng DM-1701
The DM-1701 is the most cost-effective DMR HT on the market, with solid hardware construction and easy to use programming software. The greatest appeal of Baofeng’s DM-1701 lies in its ability to deliver great DMR compatibility, crystal clear audio & great cost-effective. The light-weight portability, high capacity battery, and user-customizable design all make it the perfect radio for both experienced and new HAM users.
Users can apply the [.rdt] template file that saves all the custom settings to the radio through CPS. The DM-1701 template can be used with the MD-380/MD-2017/MD-9600

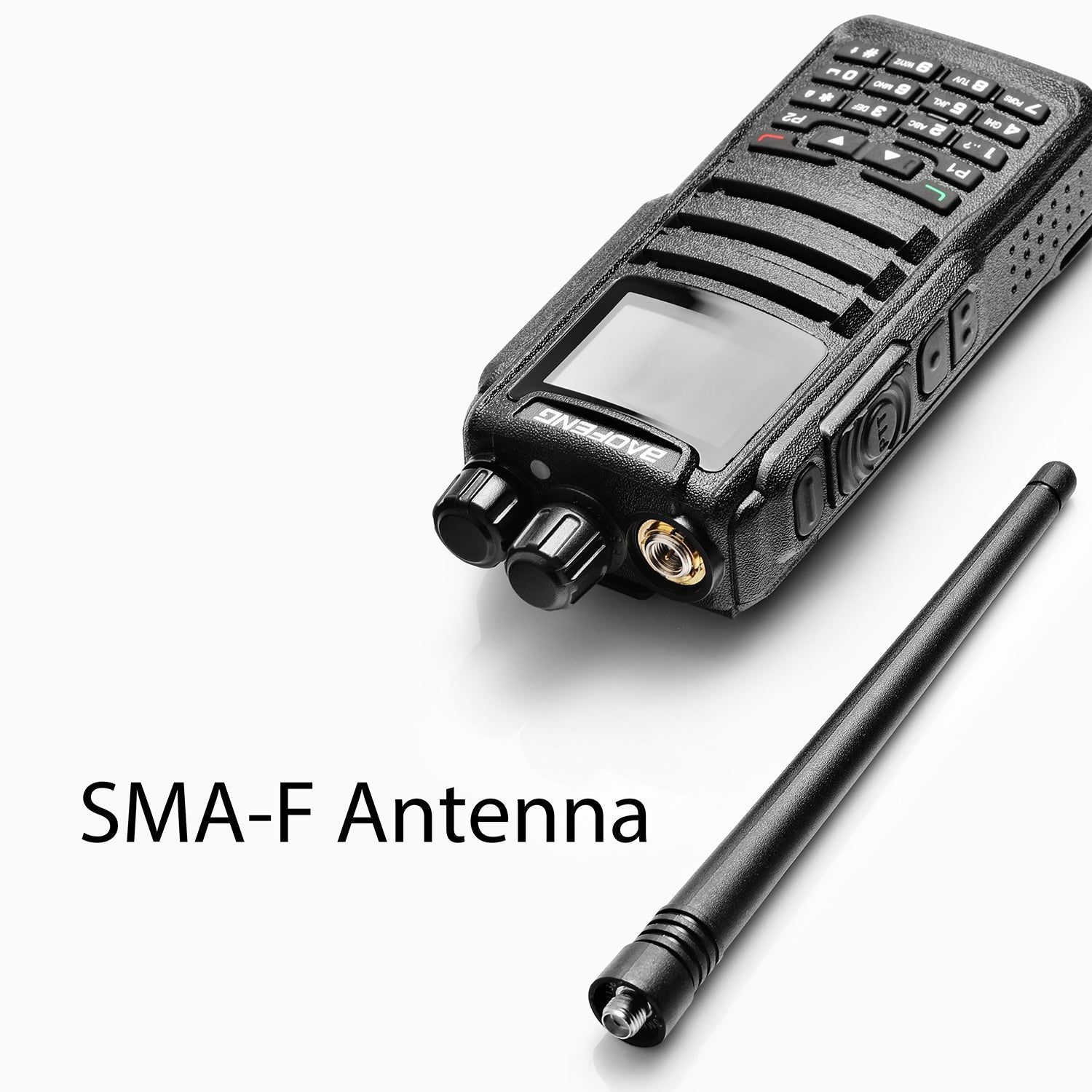

✧ SMA-Female Antenna (Backward Compatible with SMA-Female Antennas)
✧ 2-Pin K-plug port for most radio accessories, compatible original Baofeng accessories and Radioddity antenna, PTT speaker Mic, etc.
✧ USB Programming Cable Included - Windows PC Required
✧ Firmware Upgradeable
Multiple communication efficiency
The DM-1701 offers large storage with 3,000 Channels, 10,000 Talk Groups and 120,000 Contacts. Channel selection can be switched by top rotate knob or input channel number by keypad. CPS supports mass editing on channels and contact IDs, importing and exporting them with CSV format, which makes it easier to write code-plugs and more complex application requirements.
Strong digital function
The DM-1701 is DMO True2-slot DMR, it not only supports DMR protocol, including single call, group call and all call; it also supports two-way radio detection, call alert, remote monitoring, remote inhibit/kill and SMS Data transmission function. Digital alarm function and encryption are also available, encryption only supports calling between the DM-1701 devices. In digital mode, you can monitor the color code, time slot, frequency and contact ID.

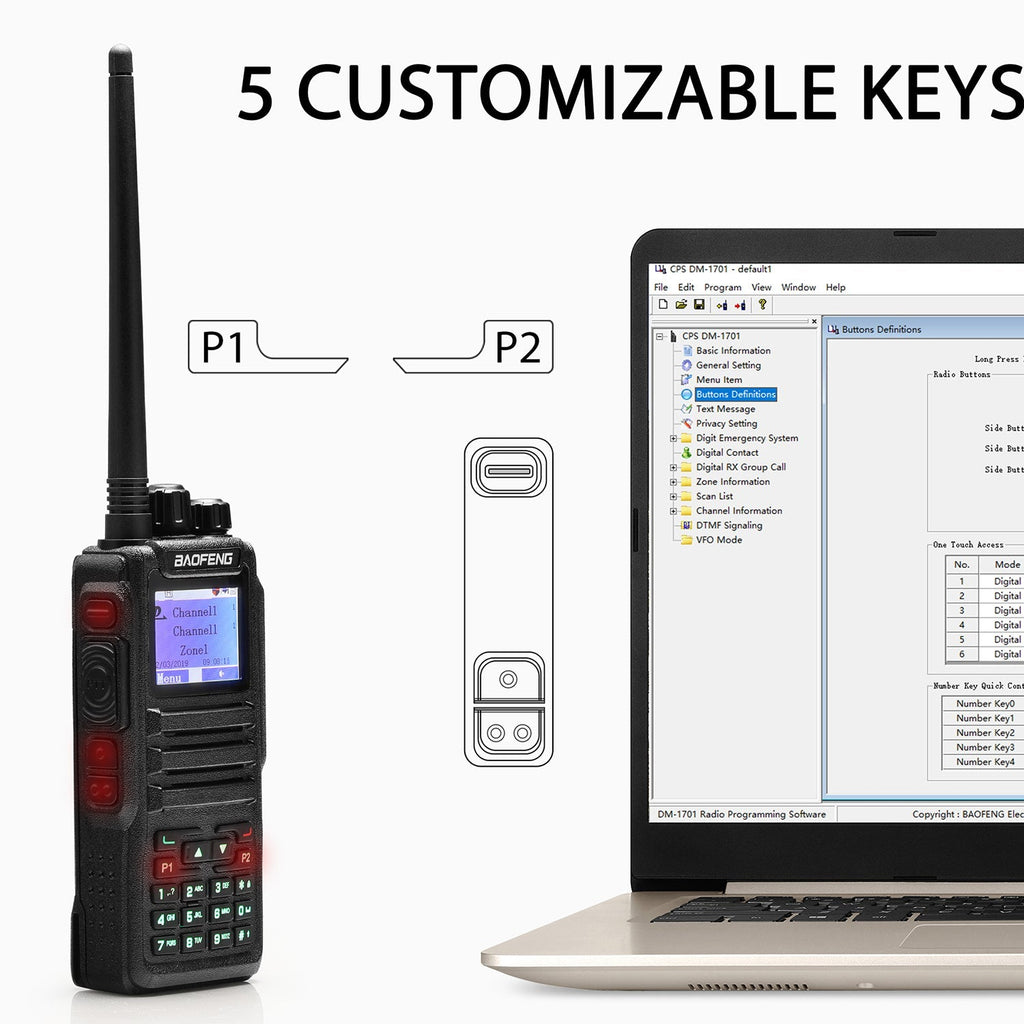

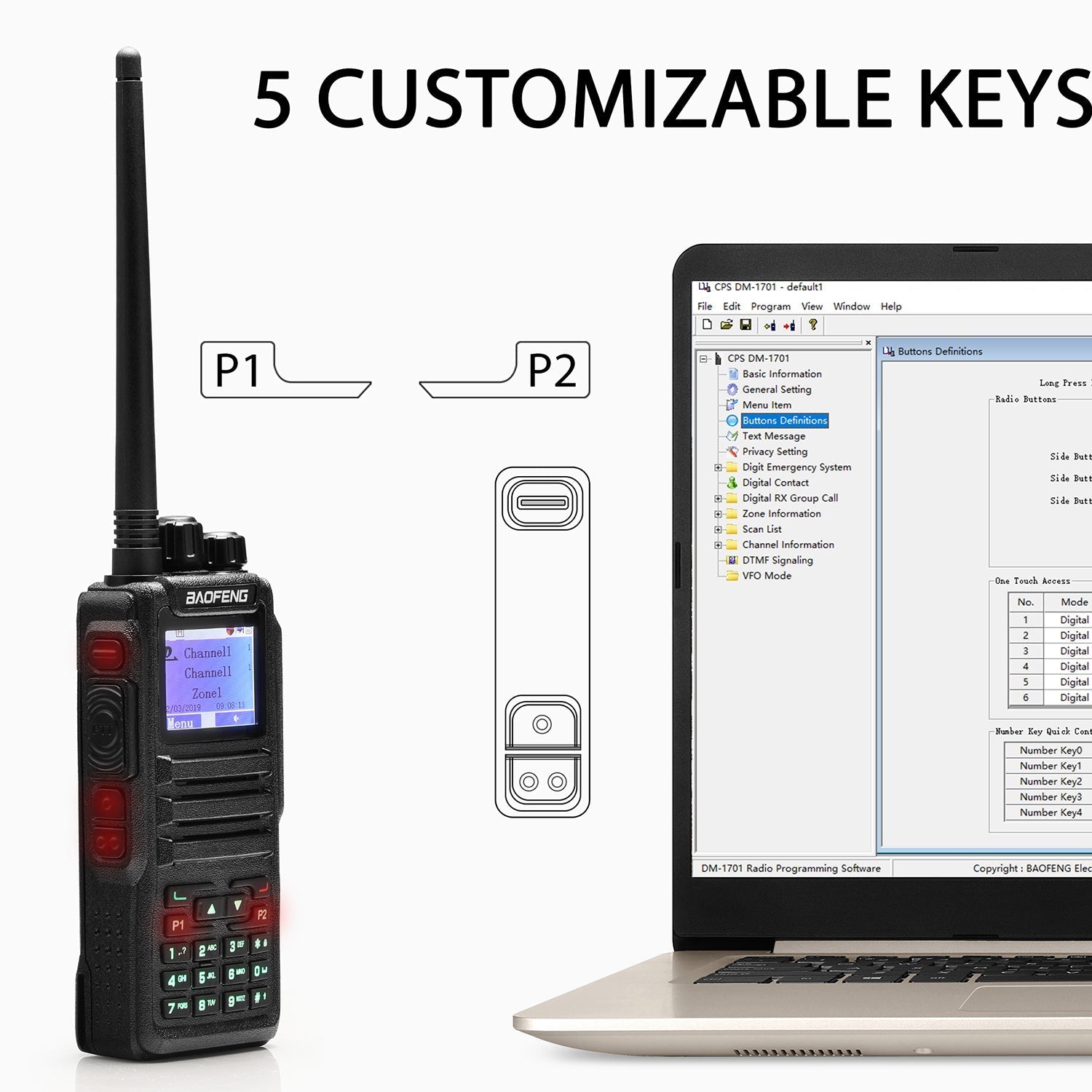

Multiple customizable keys

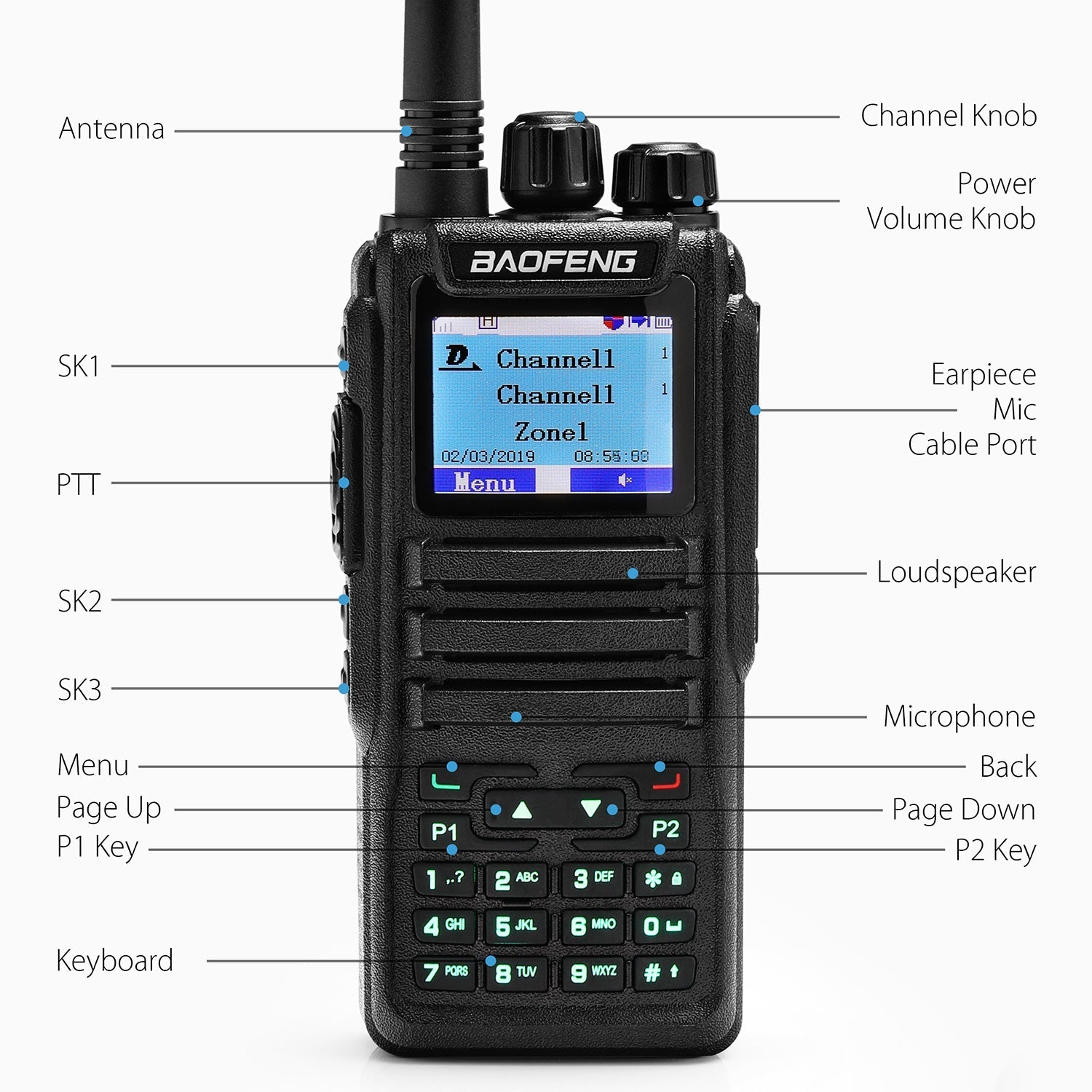

The DM-1701 provides five user-defined keys based on user habits. Three side keys are designed as the default setting, P1&P2 are blank setting, users can change their setting by PC programming.
SMS Function
This product supports the DMR data function, and allows sending and receiving messages; the maximum length of each message is 144 characters and less than 50 lines.
Miltary Quality DMR

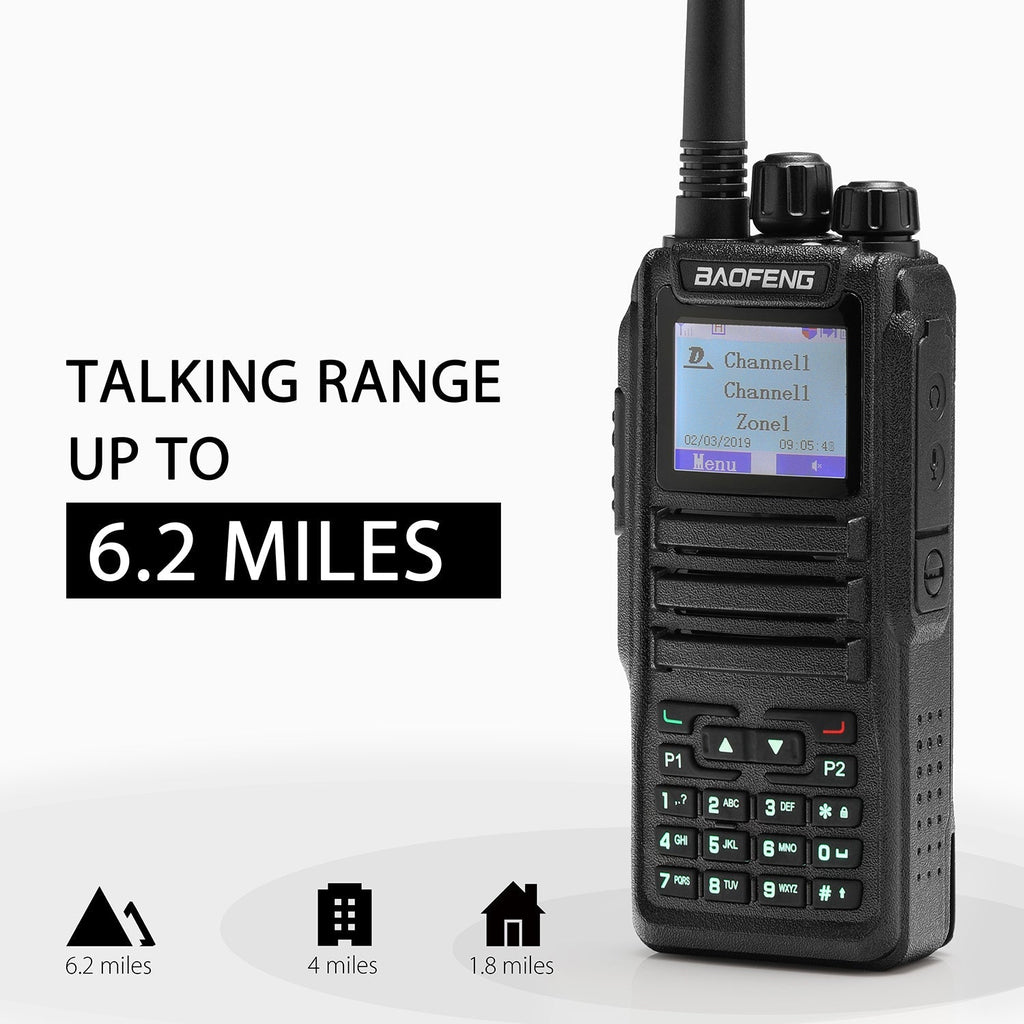

Design for both commercial and amateur usage, the DM-1701 has high-quality housing, strong spring belt clip that makes it more portable. The 2200mAh Li-ion battery has endurance for 48 hours. Equipped with an original Baofeng or Radioddity SMA-F antenna, its talking range can be up to 3-10 km (1.8-6.2 miles) under most circumstances.
Specifications:
1. Frequency: VHF 144-148MHz & UHF 420-450MHz
2. Output Power: 1W/2W/5W
3. Zones: 250 ( allow 64 channels per zone)
4. Scan List: 250
5. Digital emergency alarm: 32
6. SMS function
7. High fidelity quality
8. Manual Programmable
9. High and low power selection
10. CTCSS / CDCSS and tail cancellation
11. Digital mode supports repeater
12. Channel Spacing: 25KHz(Wide Band), 20KHz, 12.5KHz(Narrow Band)
13. Phase-locked Step: 2.5K/5K/6.25K~50K
Note: About volume control level, currently user can only disable all tone via PC programming or turn it off by keypad: MENU- Utilities-Radio Settings-Tones/Alerts-keypad Tones-Turn On/Turn Off

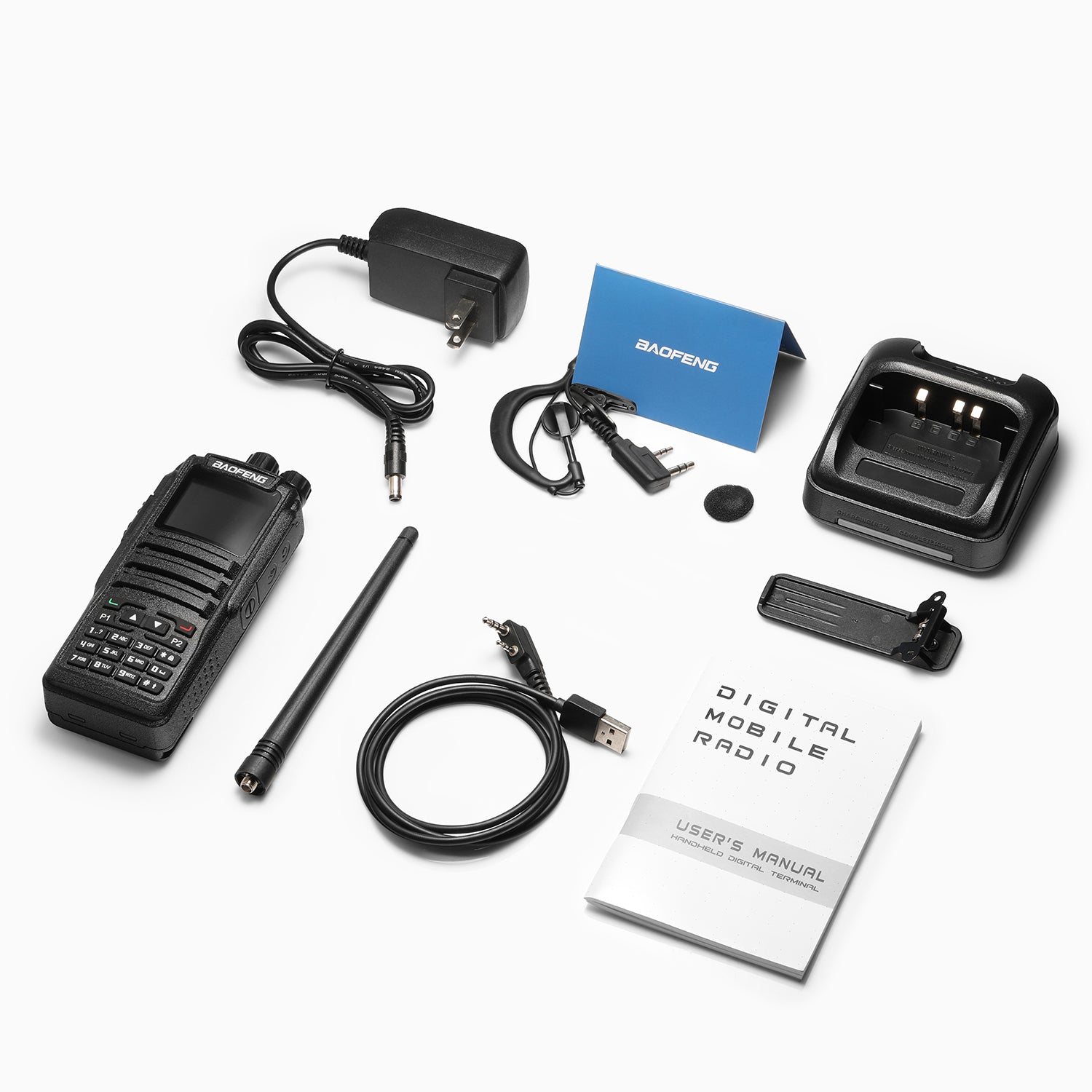

Package Content:
1x Baofeng DM-1701 DMR
1x 2200mAh Li-ion Battery
1x Belt Clip
1x Dual Band SMA-F Antenna
1x Desktop Charger
1x User Manual
1x PTT Earpiece
1x Wrist Strip
1 x USB Programming Cable
