- UV-82L 5W Dual Band Radio
SKU: 28-020-180
| In Stock Out of stock
UV-82L 5W Dual Band Radio
$24.99
$24.99
- | Compare
[DOWNLOAD] User Manual and Programming Software
▸ FCC ID: 2AJGM-UV82
▸ Frequency Range: 144-148 and 420-450MHz, Dual Band, Dual Display, Dual Frequency, Dual Standby
▸ A/B band independent operation, 128 groups channels storage, Shortcut menu operation mode
▸ VFO and Memory channels scan, Emergency Alarm, Tri-color background light selectable
▸ 0~9 grades VOX selectable, PTT and ANI ID, FM radio and 25 stations storage, 1750Hz Brust, Time-out Timer.If you have any questions,please feel free to contact us!
▸ Channel Monitor, Battery Saver, Keypad Lock, Low Battery Alert, ROGER SET, Emergency Alert.
Please note that we have already upgraded the software. If the software and driver in the CD does not work properly, please download the newest version: http://s3.amazonaws.com/UV-82L/UV82L-DRIVER%2BSOFTWARE.zip
This radio has upped the bar on ham radio technology! Compared to previous Baofeng products (UV-5R and the UV-B Series) this radio comes with a much louder speaker (1 watt!), a more solid design, larger buttons, and a better antenna. This radio can be programmed with or without a PC to also work on private repeater systems. (Save thousands compared to a Motorola / Kenwood setup).
Product Features:
25KHz/12.5KHz Switchable.

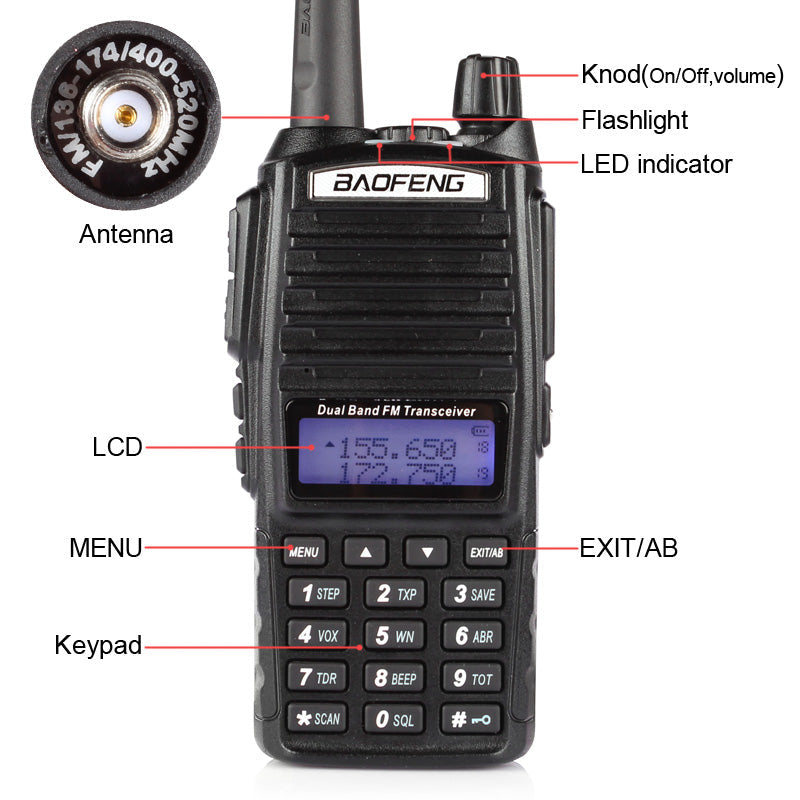

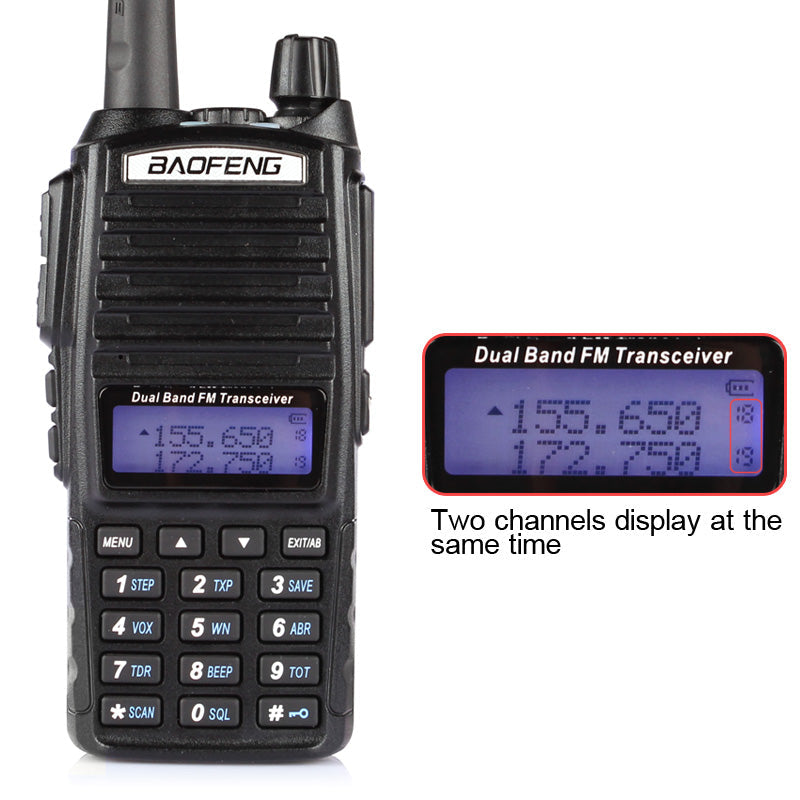

Large LCD Display. LED Flashlight.
High /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder and tone searching - dual standby.
PC programmable.
Wide/Narrow Band (25kHz/12.5kHz).
Transmitter time-out timer (TOT).
High/Low TX power selectable.
Busy channel lock-out (BCLO).
Specifications:
General Frequency Range: VHF 144-148MHz & UHF 420-450MHz
Channel Memories: 128.
Frequency Stability: ±2.5ppm.
Antenna: High gain DualBand antenna.
Antenna Impedance: 50Ω.
Operating Voltage: DC 7.4V.
Mode of operation: Simple or semi-duplex.

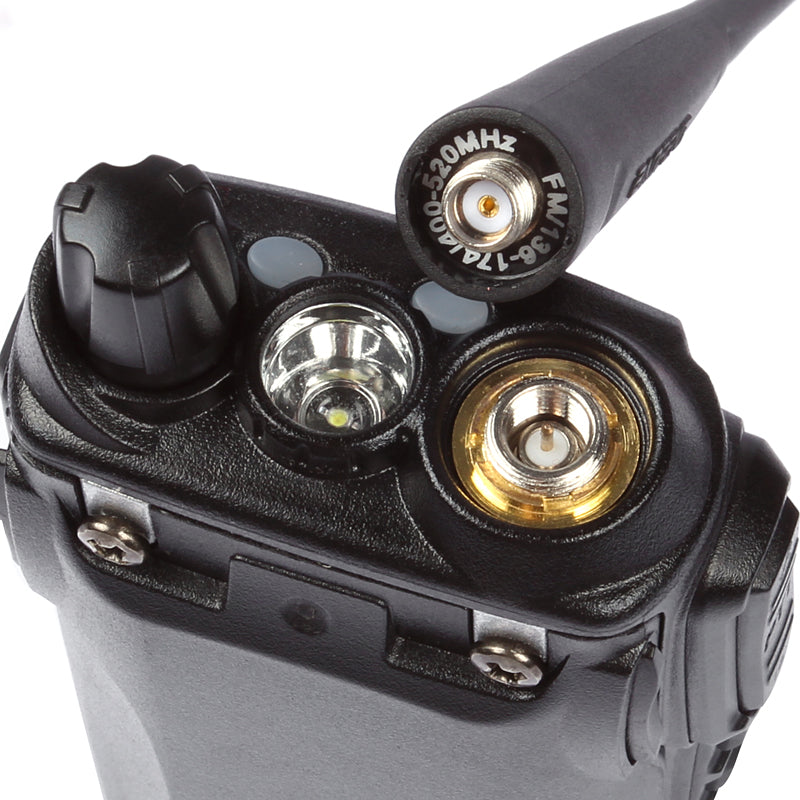

Antenna: SMA -Female.
Earpiece/mic type: Kenwood Plug type.

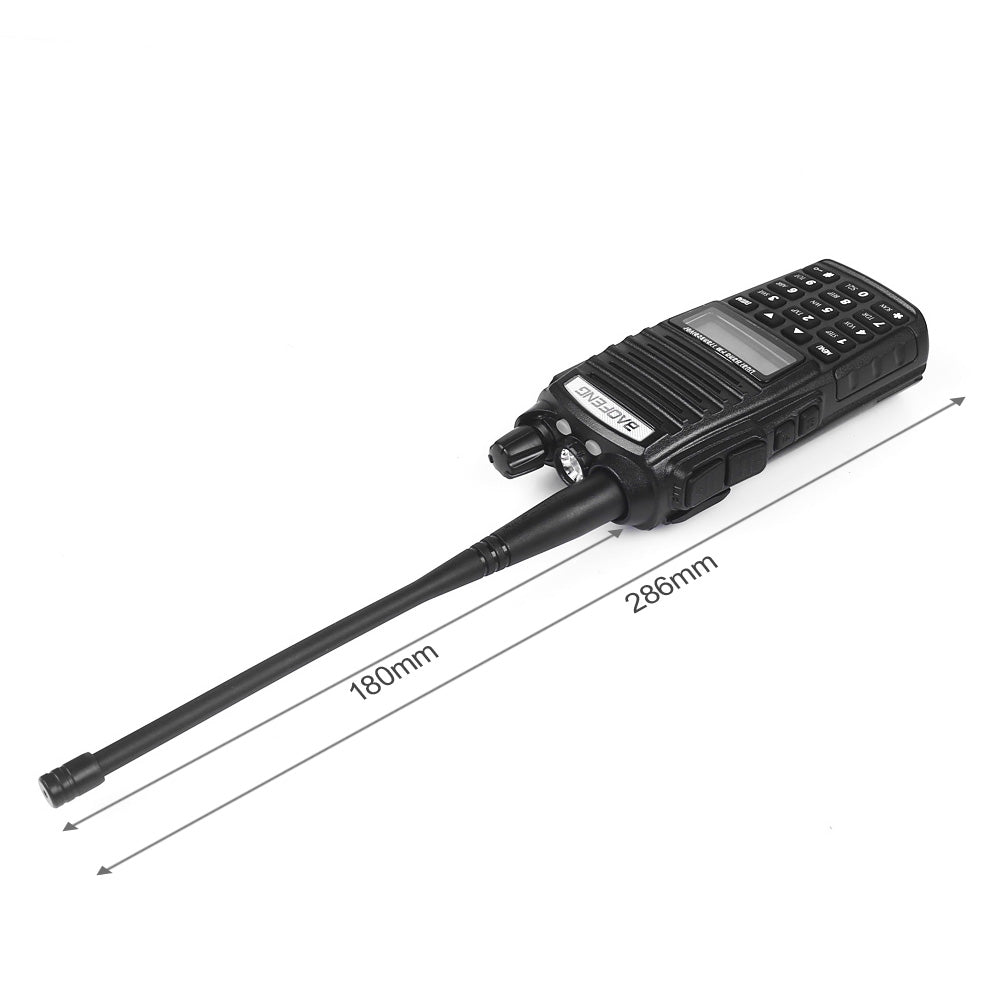

Dimension(W x H x D): 132 x 60 x 35 mm (not included antenna).
Weight: 238g (including battery, antenna).
Power adapter: Input: AC100-240V, 50-60Hz;Output: DC10V/500mA;
Plug Type: US.
Transmitter: Output power: 5W / 1W (Max 5W).
Maximum deviation: 5kHz (Wide) / 2.5kHz (Narrow).

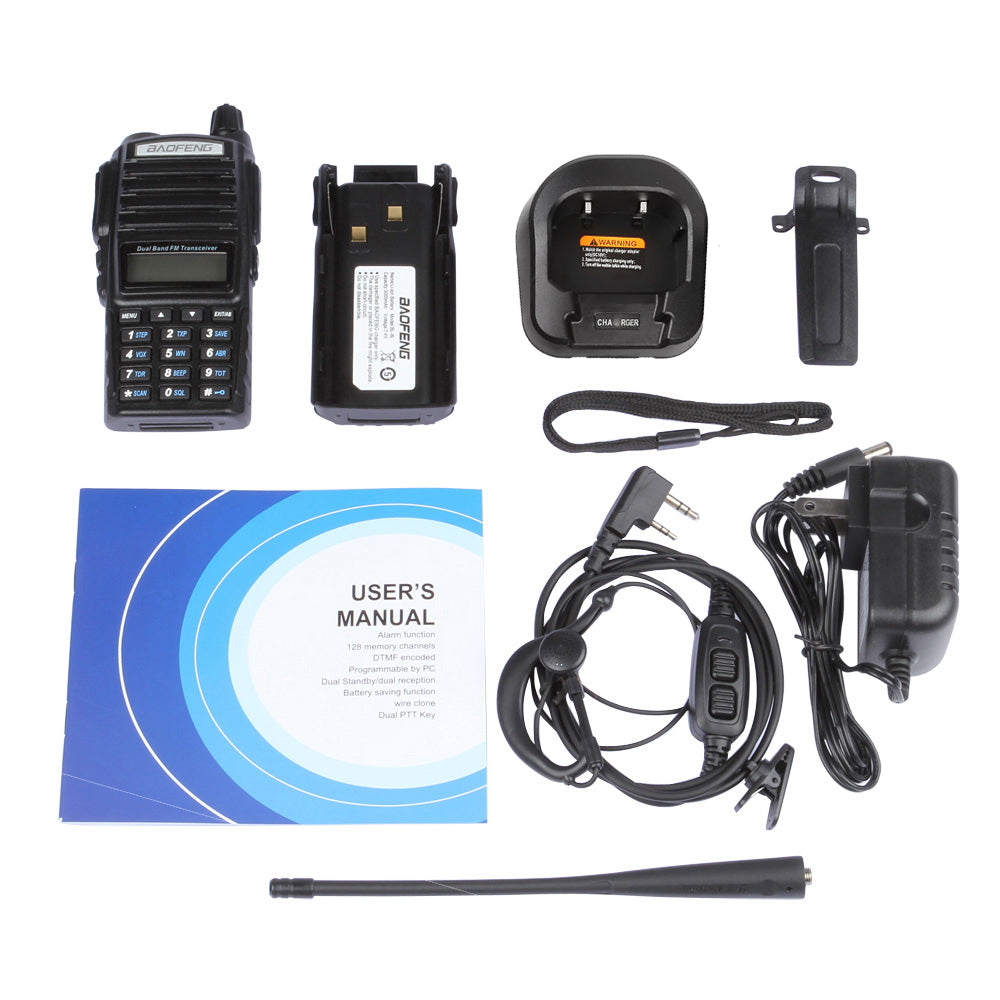

Package Included:
1 x Baofeng UV-82L

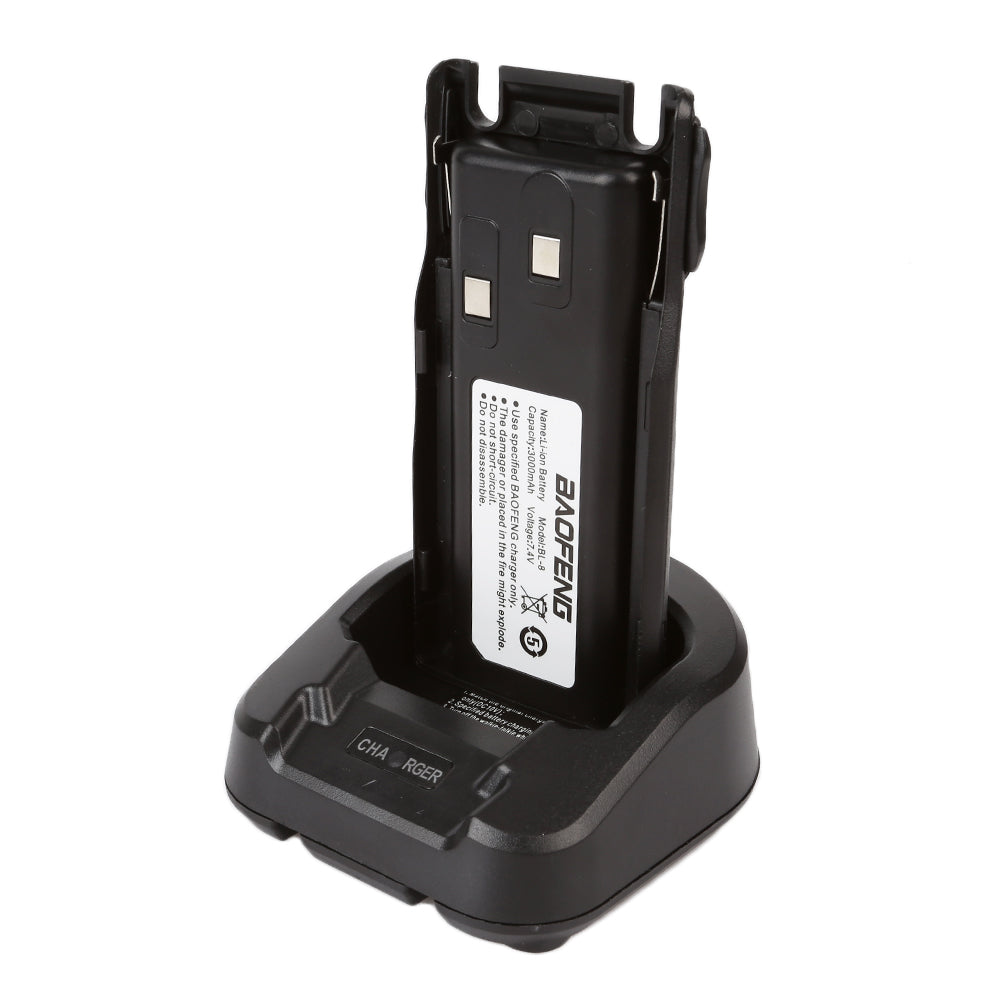

1 x 7.4V/1800mAh BL-8 Battery Antenna
1 x Power Adapter
1 x Belt Clip
1 x Hand Strap

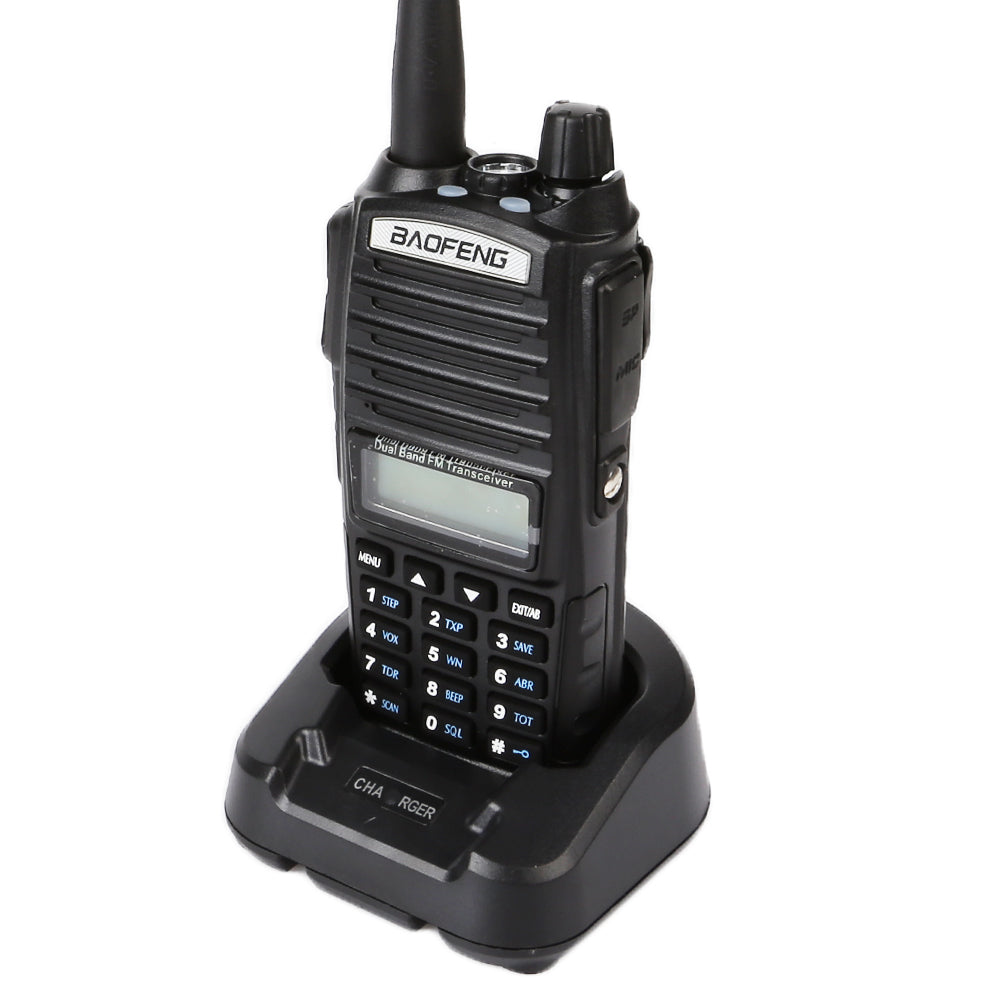

1 x Charger
1 x User Manual

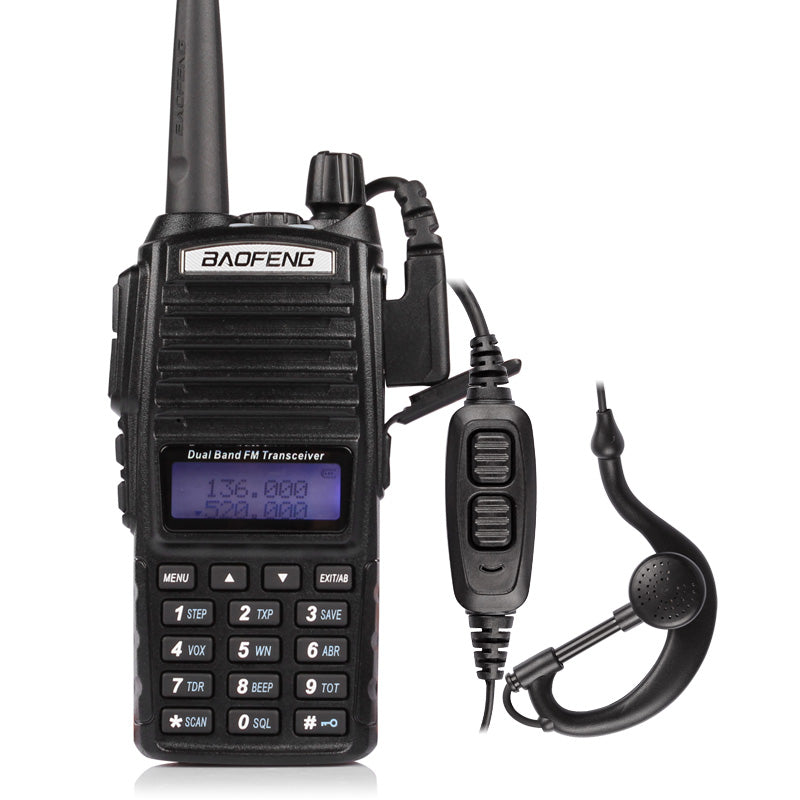

1 x Earpiece
